TEC Gearmotor with brake, 3 phase, 11kW at 10 to 1
T3AB, 3 Phase, 11kW, 4 pole, 160M Frame, IE3, brake gearmotor at 10 to 1 ratio
£3,085.98
£2,571.65

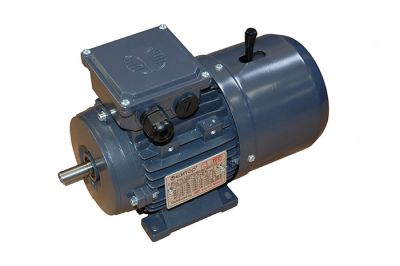

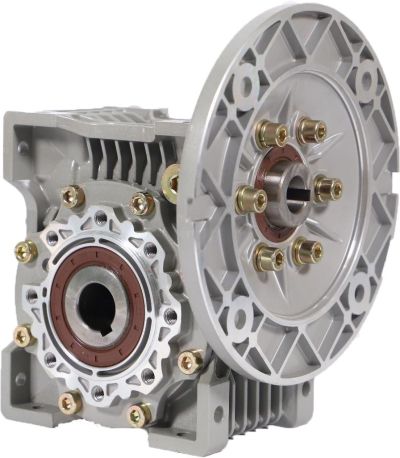

T3AB, Aluminium Frame, 3 Phase, 11kW, 4 pole, 160M Frame, IE3 Premium Efficiency Brake Motor coupled to a TCNDK150 at 10 to 1 ratio
AC to DC rectifier mounted in motor terminal box, brake fed from a two phase 400Vac supply.
Brake torque 150Nm. (The brake torque figures are factory set and cannot be adjusted).
FCNDK Gearbox Mounting Positions (376.18 kB)
Power kW
11kW
Input Voltage
400/690V
Input Phases
3 phase
Poles
4
Frame Size
160/150
Encl Rating
IP55
Weight
157.000000
Duty
S1
Output Speed
140rpm
Ratio
10 to 1
Approvals
CE
Model No
TECWGBM11-10
Mounting Type
B3/B5
Input Volts Star
690V
Input Volts Delta
400V
Frame Material
Aluminium
Output Bore Dia
50mm
Output Torque
661.63Nm
Service Factor
1.84
Efficiency
IE3 Motor
Max Temp
40 DegC
Current 200V
N/A
Current 400V
21.6 Amps
Slip Speed
1450rpm
Inverter Rated
Yes
