TEC Gearmotor with brake, 3 phase, 2.2kW at 10 to 1
T3AB, 3 Phase, 2.2kW, 4 pole, 100L Frame, IE3, brake gearmotor at 10 to 1 ratio
£1,036.20
£863.50

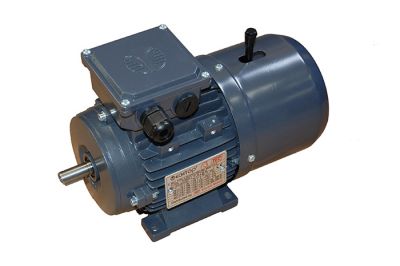

T3AB, Aluminium Frame, 3 Phase, 2.2kW, 4 pole, 100L Frame, IE3 Premium Efficiency Brake Motor coupled to a TCNDK90 at 10 to 1 ratio
Standard brake voltage, 205Vdc rectified in motor terminal box, Fed from a single phase 230Vac supply.
Brake torque 35Nm. (The brake torque figures are factory set and cannot be adjusted).
Power kW
2.2kW
Input Voltage
400/230V
Input Phases
3 phase
Poles
4
Frame Size
100/90
Encl Rating
IP55
Weight
32.300000
Duty
S1
Output Speed
140rpm
Ratio
10 to 1
Approvals
CE
Model No
TECWGBM2.2-10
Mounting Type
B3/B14/B5
Input Volts Star
400V
Input Volts Delta
230V
Frame Material
Aluminium
Output Bore Dia
35mm
Output Torque
127.6Nm
Service Factor
2.27
Efficiency
IE3 Motor
Max Temp
40 DegC
Current 200V
8.91 Amps
Current 400V
4.83 Amps
Slip Speed
1440rpm
Inverter Rated
Yes
