TEC Gearmotor with brake, 3 phase, 4kW at 20 to 1
T3AB, 3 Phase, 4kW, 4 pole, 112 Frame, IE3, brake gearmotor at 20 to 1 ratio
£1,399.98
£1,166.65

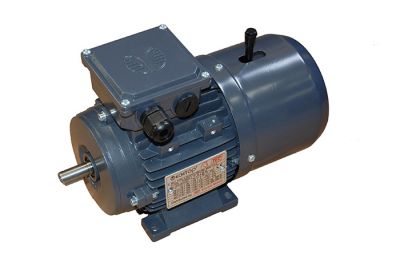

T3AB, Aluminium Frame, 3 Phase, 4kW, 4 pole, 112 Frame, IE3 Premium Efficiency Brake Motor coupled to a TCNDK110 at 20 to 1 ratio
AC to DC rectifier mounted in motor terminal box, brake fed from a two phase 400Vac supply.
Brake torque 60Nm. (The brake torque figures are factory set and cannot be adjusted).
FCNDK Gearbox Mounting Positions (376.18 kB)
Power kW
4kW
Input Voltage
400/690V
Input Phases
3 phase
Poles
4
Frame Size
112/110
Encl Rating
IP55
Weight
42.000000
Duty
S1
Output Speed
70rpm
Ratio
20 to 1
Approvals
CE
Model No
TECWGBM4-20
Mounting Type
B3/B14/B5
Input Volts Star
690V
Input Volts Delta
400V
Frame Material
Aluminium
Output Bore Dia
42mm
Output Torque
436.92Nm
Service Factor
1.30
Efficiency
IE3 Motor
Max Temp
40 DegC
Current 200V
N/A
Current 400V
8.23 Amps
Slip Speed
1440rpm
Inverter Rated
Yes
