TEC Gearmotor with brake, 3 phase, 5.5kW at 10 to 1
T3AB, 3 Phase, 5.5kW, 4 pole, 132S Frame, IE3, brake gearmotor at 10 to 1 ratio
£1,742.10
£1,451.75

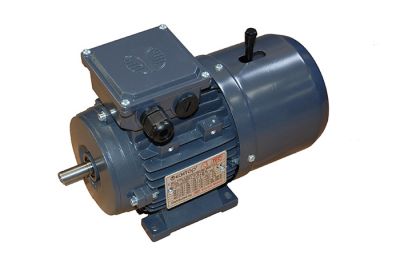

T3AB, Aluminium Frame, 3 Phase, 5.5kW, 4 pole, 132S Frame, IE3 Premium Efficiency Brake Motor coupled to a TCNDK110 at 10 to 1 ratio
AC to DC rectifier mounted in motor terminal box, brake fed from a two phase 400Vac supply.
Brake torque 70Nm. (The brake torque figures are factory set and cannot be adjusted).
FCNDK Gearbox Mounting Positions (376.18 kB)
Power kW
5.5kW
Input Voltage
400/690V 3 phase
Input Phases
3 phase
Poles
4
Frame Size
132/110
Encl Rating
IP55
Weight
87.000000
Duty
S1
Output Speed
140rpm
Ratio
10 to 1
Approvals
CE
Model No
TECWGBM5.5-10
Mounting Type
B3/B14/B5
Input Volts Star
690V
Input Volts Delta
400V
Frame Material
Aluminium
Output Bore Dia
42mm
Output Torque
319Nm
Service Factor
1.73
Efficiency
IE3 Motor
Max Temp
40 DegC
Current 200V
N/A
Current 400V
10.9 Amps
Slip Speed
1450rpm
Inverter Rated
Yes
