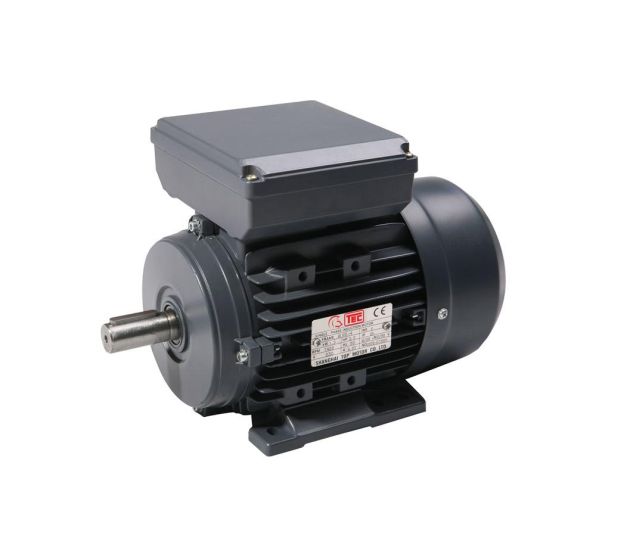

TEC TCC, 0.25kW, 240V 1 Phase 4 Pole Twin Cap Motor

£120.90 £100.75

The TCC capacitor start capacitor run motor is a single-phase motor designed for applications that need a high starting torque. The extra start capacitor and circuit gives a torque boost on start up to help get the load away. Available in 230Vac/1ph/50Hz and 110Vac/1ph/50Hz models.

Downloads

Power kW 0.25

Power HP 0.37

Input Phases 1

Poles 4

Slip Speed 1380rpm

Frame Size 71

Model No TCC-711-4

Frame Material Aluminium

Shaft Diameter 14mm

Current 200V 2.01A

Current 400V N/A

Weight 6.200000

Width 147mm

Depth 255mm

Height 196mm

Input Volts Delta N/A

Input Volts Star N/A

Encl Rating IP55

Duty S1

Mounting Type B3

Input Freq 50Hz

Max Temp 40 deg C

Inverter Rated No

Approvals CE
