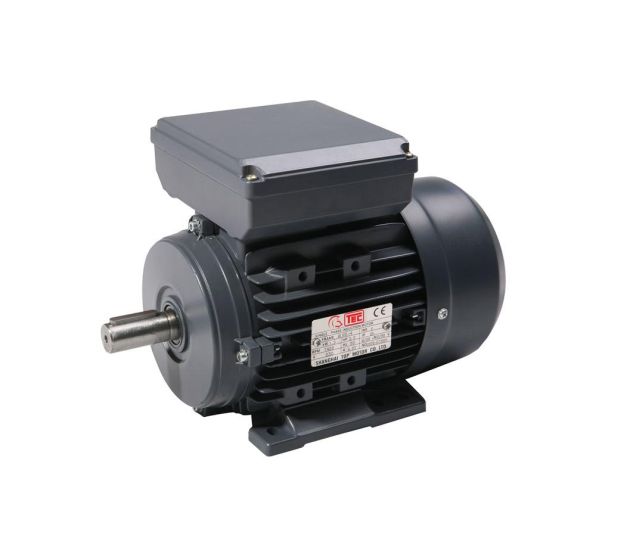

TEC TCC, 0.55kW, 240V 1 Phase 4 Pole Twin Cap Motor
TEC TCC, 0.55kW, 240V 1 Phase 4 Pole Twin Cap Motor
More Information
£175.98
£146.65
The TCC capacitor start capacitor run motor is a single-phase motor designed for applications that need a high starting torque. The extra start capacitor and circuit gives a torque boost on start up to help get the load away. Available in 230Vac/1ph/50Hz and 110Vac/1ph/50Hz models.
Power kW
0.55
Power HP
0.75
Input Phases
1
Poles
4
Slip Speed
1400rpm
Frame Size
80
Model No
TCC-801-4
Frame Material
Aluminium
Shaft Diameter
19mm
Current 200V
4.03A
Current 400V
N/A
Weight
10.000000
Width
163mm
Depth
290mm
Height
226mm
Input Volts Delta
N/A
Input Volts Star
N/A
Encl Rating
IP55
Duty
S1
Mounting Type
B3
Input Freq
50Hz
Max Temp
40 deg C
Inverter Rated
No
Approvals
CE
