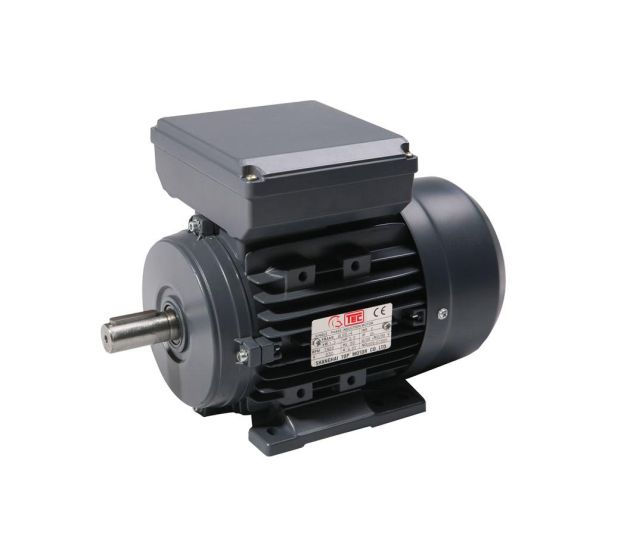

TEC TCC, 1.1kW, 240V 1 Phase 2 Pole Twin Cap Motor

£194.70 £162.25

The TCC capacitor start capacitor run motor is a single-phase motor designed for applications that need a high starting torque. The extra start capacitor and circuit gives a torque boost on start up to help get the load away. Available in 230Vac/1ph/50Hz and 110Vac/1ph/50Hz models.

Downloads

Power kW 1.1

Power HP 1

Input Phases 1

Poles 2

Slip Speed 2780rpm

Frame Size 80

Model No TCC-802-2

Frame Material Aluminium

Shaft Diameter 19mm

Current 200V 7.04A

Current 400V N/A

Weight 10.000000

Width 163mm

Depth 290mm

Height 226mm

Input Volts Delta N/A

Input Volts Star N/A

Encl Rating IP55

Duty S1

Mounting Type B3

Input Freq 50Hz

Max Temp 40 deg C

Inverter Rated No

Approvals CE
