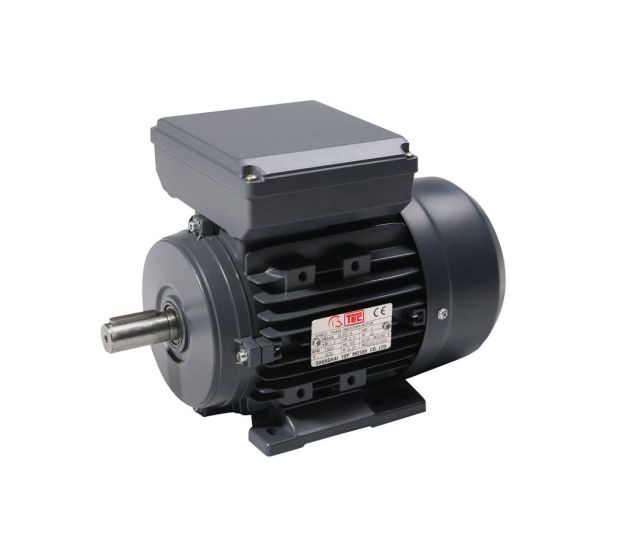

TEC TCC, 1.1kW, 240V 1 Phase 4 Pole Twin Cap Motor

£246.12 £205.10

The TCC capacitor start capacitor run motor is a single-phase motor designed for applications that need a high starting torque. The extra start capacitor and circuit gives a torque boost on start up to help get the load away. Available in 230Vac/1ph/50Hz and 110Vac/1ph/50Hz models.

Downloads

Power kW 1.1

Power HP 1.5

Input Phases 1

Poles 4

Slip Speed 1410rpm

Frame Size 90S

Model No TCC-90S-4

Frame Material Aluminium

Shaft Diameter 24mm

Current 200V 7.24A

Current 400V N/A

Weight 14.600000

Width 183mm

Depth 312mm

Height 243mm

Input Volts Delta N/A

Input Volts Star N/A

Encl Rating IP55

Duty S1

Mounting Type B3

Input Freq 50Hz

Max Temp 40 deg C

Inverter Rated No

Approvals CE
