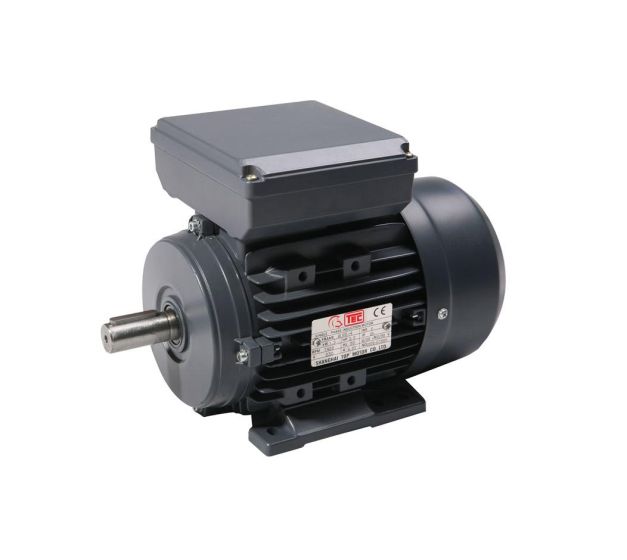

TEC TCC, 2.2kW, 240V 1 Phase 2 Pole Twin Cap Motor
TEC TCC, 2.2kW, 240V 1 Phase 2 Pole Twin Cap Motor
More Information
£301.38
£251.15
The TCC capacitor start capacitor run motor is a single-phase motor designed for applications that need a high starting torque. The extra start capacitor and circuit gives a torque boost on start up to help get the load away. Available in 230Vac/1ph/50Hz and 110Vac/1ph/50Hz models.
Power kW
2.2
Power HP
3
Input Phases
1
Poles
2
Slip Speed
2810rpm
Frame Size
90L
Model No
TCC-90L-2
Frame Material
Aluminium
Shaft Diameter
24mm
Current 200V
13.57A
Current 400V
N/A
Weight
17.800000
Width
183mm
Depth
367mm
Height
243mm
Input Volts Delta
N/A
Input Volts Star
N/A
Encl Rating
IP55
Duty
S1
Mounting Type
B3
Input Freq
50Hz
Max Temp
40 deg C
Inverter Rated
No
Approvals
CE
