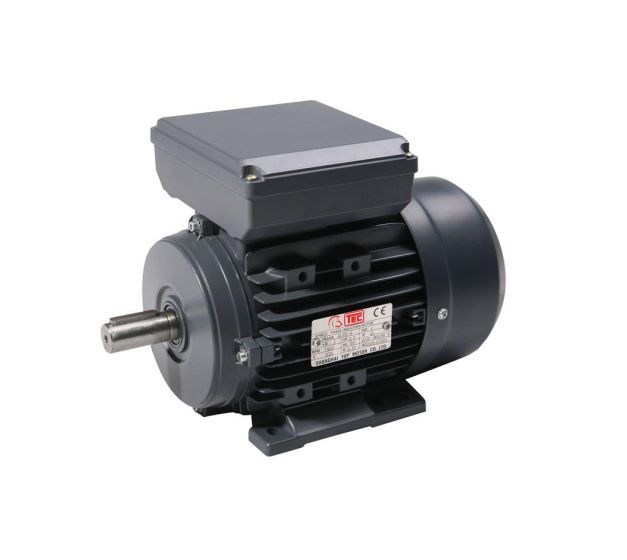

TEC TCC, 2.2kW, 240V 1 Phase 4 Pole Twin Cap Motor

£391.62 £326.35

The TCC capacitor start capacitor run motor is a single-phase motor designed for applications that need a high starting torque. The extra start capacitor and circuit gives a torque boost on start up to help get the load away. Available in 230Vac/1ph/50Hz and 110Vac/1ph/50Hz models.

Downloads

Power kW 2.2

Power HP 3

Input Phases 1

Poles 4

Slip Speed 1430rpm

Frame Size 100L

Model No TCC-100L1-4

Frame Material Aluminium

Shaft Diameter 28mm

Current 200V 13.9A

Current 400V N/A

Weight 17.800000

Width 205mm

Depth 387mm

Height 265mm

Input Volts Delta N/A

Input Volts Star N/A

Encl Rating IP55

Duty S1

Mounting Type B3

Input Freq 50Hz

Max Temp 40 deg C

Inverter Rated No

Approvals CE
