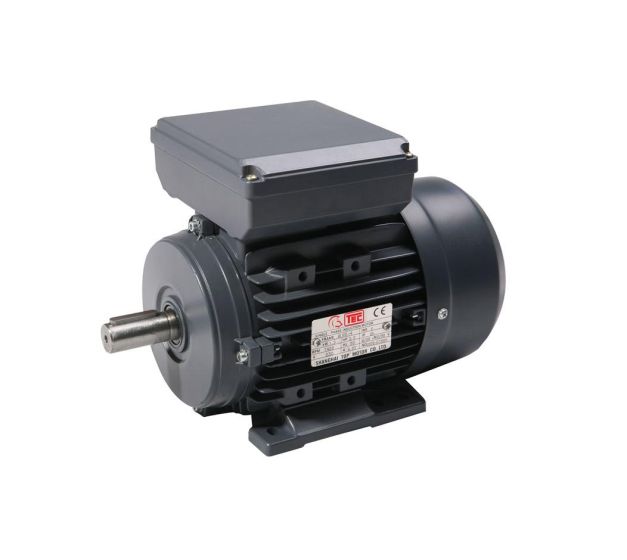

TEC TCC, 3.7kW, 240V 1 Phase 4 Pole Twin Cap Motor
TEC TCC 3.7kW, 240V 1 Phase 4 Pole Twin Cap Motor
£607.80
£506.50
The TCC capacitor start capacitor run motor is a single-phase motor designed for applications that need a high starting torque. The extra start capacitor and circuit gives a torque boost on start up to help get the load away. Available in 230Vac/1ph/50Hz and 110Vac/1ph/50Hz models.
Power kW
3.7
Power HP
5
Input Phases
1
Poles
4
Slip Speed
1440rpm
Frame Size
112M
Model No
TCC-112M1-4
Frame Material
Aluminium
Shaft Diameter
28mm
Current 200V
22A
Current 400V
N/A
Weight
23.000000
Width
222mm
Depth
416mm
Height
283mm
Input Volts Delta
N/A
Input Volts Star
N/A
Encl Rating
IP55
Duty
S1
Mounting Type
B3
Input Freq
50Hz
Max Temp
40 deg C
Inverter Rated
No
Approvals
CE
