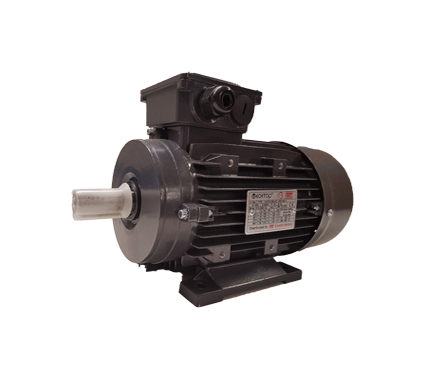

TECA2, 3 Phase, 0.55kW, 4 pole, IE2 High Efficiency Motor

TECA2, aluminium frame, 3 phase, 0.55kW, 4 pole motor, 80 frame, IE2 motor

More Information
£110.46 £92.05

TECA2, aluminium frame, 3 phase, 0.55kW, 4 pole motor, 80 frame, IE2 motor

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

NOTE:  The length of the newer IE2 motor may be longer than the older IE1 motor.  Please check that you have no size constraints.

Power kW 0.55
Power HP 0.75
Input Phases 3
Poles 4
Slip Speed 1420rpm
Frame Size 80
Model No T2A-801-4
Frame Material Aluminium
Shaft Diameter 19mm
Current 200V 2.55Amps
Current 400V 1.47Amps
Weight 8.950000
Width 157mm
Depth 304mm
Height 214mm
Input Volts Delta 200V
Input Volts Star 400V
Encl Rating IP55
Efficiency IE2
Duty S1
Mounting Type B3
Input Freq 50 / 60Hz
Max Temp 40 Deg C
Inverter Rated Yes
Approvals CE
