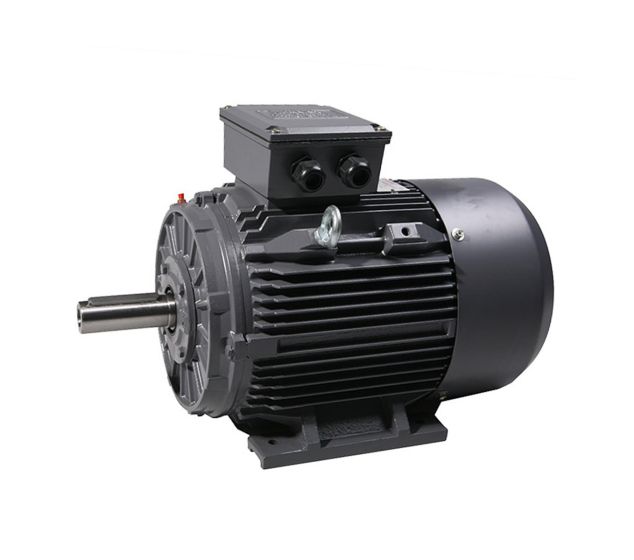

TECA3, 3 Phase, 0.75kW, 4 pole, IE3 Premium Efficiency Motor
TECA3, aluminium frame, 3 phase, 0.75kW, 4 pole motor, 80 frame, IE3 motor
£135.06
£112.55
TECA3, aluminium frame, 3 phase, 0.75kW, 4 pole motor, 80 frame, IE3 motor
B3 foot mount as standard
Select B34 foot & face mount or B35 foot & flange mount from the drop down box
NOTE: The length of the newer IE3 motor may be longer than the older IE1/IE2 motor. Please check that you have no size constraints.
Power kW
0.75
Power HP
1
Input Phases
3
Poles
4
Slip Speed
1440rpm
Frame Size
80
Model No
TECA3-802-4
Frame Material
Aluminium
Shaft Diameter
19mm
Current 200V
3.29Amps
Current 400V
1.9Amps
Weight
11.700000
Width
157mm
Depth
227mm
Height
214mm
Input Volts Delta
200V
Input Volts Star
400V
Encl Rating
IP55
Efficiency
IE3
Duty
S1
Mounting Type
B3
Input Freq
50 / 60Hz
Max Temp
40 Deg C
Inverter Rated
Yes
Approvals
CE
