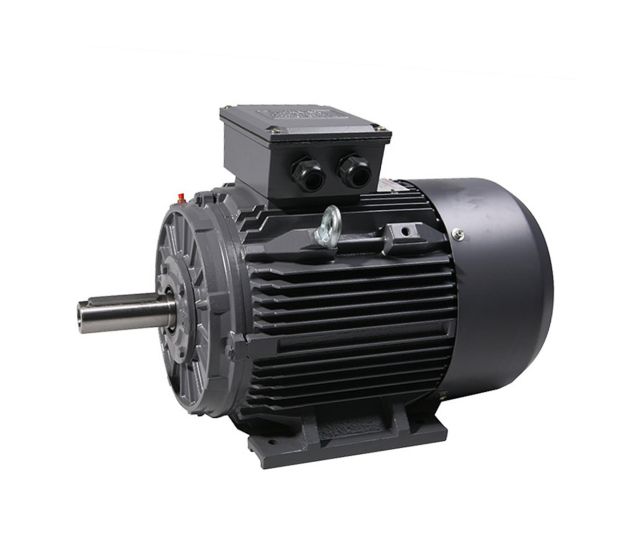

TECA3, 3 Phase, 1.5kW, 2 pole, IE3 Premium Efficiency Motor

TECA3, aluminium frame, 3 phase, 1.5kW, 2 pole motor, 90S frame, IE3 motor

More Information
£179.94 £149.95

TECA3, aluminium frame, 3 phase, 1.5kW, 2 pole motor, 90S frame, IE3 motor

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

NOTE:  The length of the newer IE3 motor may be longer than the older IE1/IE2 motor.  Please check that you have no size constraints.

Power kW 1.5
Power HP 2
Input Phases 3
Poles 2
Slip Speed 2900rpm
Frame Size 90S
Model No TECA3-90S-2
Frame Material Aluminium
Shaft Diameter 24mm
Current 200V 5.43Amps
Current 400V 3.14Amps
Weight 14.000000
Width 177mm
Depth 315mm
Height 235mm
Input Volts Delta 200V
Input Volts Star 400V
Encl Rating IP55
Efficiency IE3
Duty S1
Mounting Type B3
Input Freq 50 / 60Hz
Max Temp 40 Deg C
Inverter Rated Yes
Approvals CE
