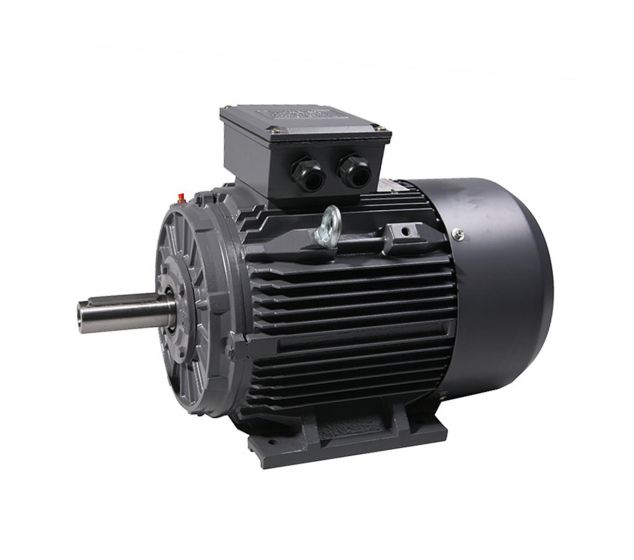

TECA3, 3 Phase, 4kW, 2 pole, IE3 Premium Efficiency Motor

TECA3, aluminium frame, 3 phase, 4kW, 2 pole motor, 112M frame, IE3 motor

More Information
£343.56 £286.30

TECA3, aluminium frame, 3 phase, 4kW, 2 pole motor, 112M frame, IE3 motor

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

NOTE:  The length of the newer IE3 motor may be longer than the older IE1/IE2 motor.  Please check that you have no size constraints.

Power kW 4
Power HP 5
Input Phases 3
Poles 2
Slip Speed 2920rpm
Frame Size 112M
Model No TECA3-112M-2
Frame Material Aluminium
Shaft Diameter 28mm
Current 200V N/A
Current 400V 7.2Amps
Weight 30.100000
Width 220mm
Depth 398mm
Height 283mm
Input Volts Delta 400V
Input Volts Star 690V
Encl Rating IP55
Efficiency IE3
Duty S1
Mounting Type B3
Input Freq 50 / 60Hz
Max Temp 40 Deg C
Inverter Rated Yes
Approvals CE
