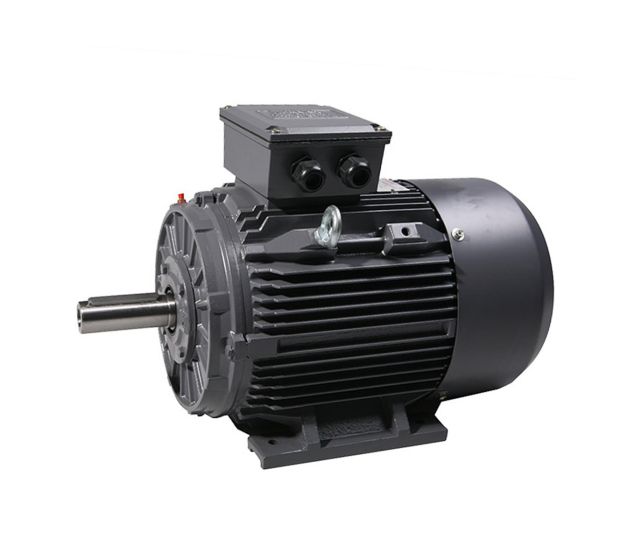

TECA3, 3 Phase, 5.5kW, 4 pole, IE3 Premium Efficiency Motor
TECA3, aluminium frame, 3 phase, 5.5kW, 4 pole motor, 132S frame, IE3 motor
£461.40
£384.50
TECA3, aluminium frame, 3 phase, 5.5kW, 4 pole motor, 132S frame, IE3 motor
B3 foot mount as standard
Select B34 foot & face mount or B35 foot & flange mount from the drop down box
NOTE: The length of the newer IE3 motor may be longer than the older IE1/IE2 motor. Please check that you have no size constraints.
Power kW
5.5
Power HP
7.5
Input Phases
3
Poles
4
Slip Speed
1460rpm
Frame Size
132S
Model No
TECA3-132S-4
Frame Material
Aluminium
Shaft Diameter
38mm
Current 200V
N/A
Current 400V
10.5Amps
Weight
47.400000
Width
261mm
Depth
460mm
Height
323mm
Input Volts Delta
400V
Input Volts Star
690V
Encl Rating
IP55
Efficiency
IE3
Duty
S1
Mounting Type
B3
Input Freq
50 / 60Hz
Max Temp
40 Deg C
Inverter Rated
Yes
Approvals
CE
