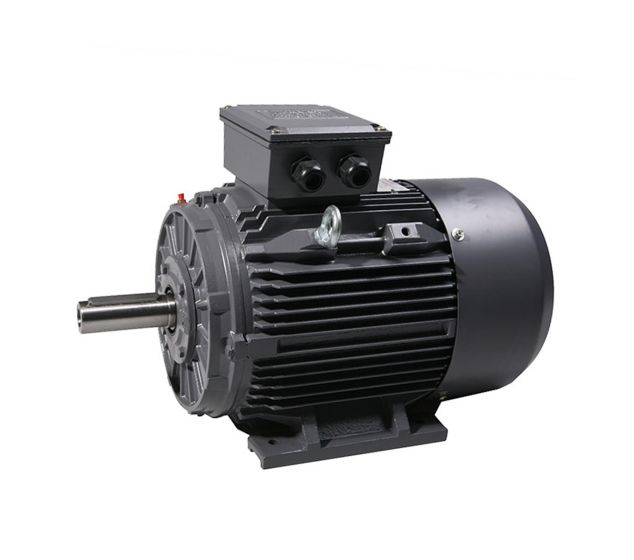

TECA3, 3 Phase, 7.5kW, 2 pole, IE3 Premium Efficiency Motor

TECA3, aluminium frame, 3 phase, 7.5kW, 2 pole motor, 132S2 frame, IE3 motor

More Information
£507.24 £422.70

TECA3, aluminium frame, 3 phase, 7.5kW, 2 pole motor, 132S2 frame, IE3 motor

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

NOTE:  The length of the newer IE3 motor may be longer than the older IE1/IE2 motor.  Please check that you have no size constraints.

Power kW 7.5
Power HP 10
Input Phases 3
Poles 2
Slip Speed 2930rpm
Frame Size 132S2
Model No TECA3-132S2-2
Frame Material Aluminium
Shaft Diameter 38mm
Current 200V N/A
Current 400V 13.1Amps
Weight 51.700000
Width 261mm
Depth 460mm
Height 323mm
Input Volts Delta 400V
Input Volts Star 690V
Encl Rating IP55
Efficiency IE3
Duty S1
Mounting Type B3
Input Freq 50 / 60Hz
Max Temp 40 Deg C
Inverter Rated Yes
Approvals CE
