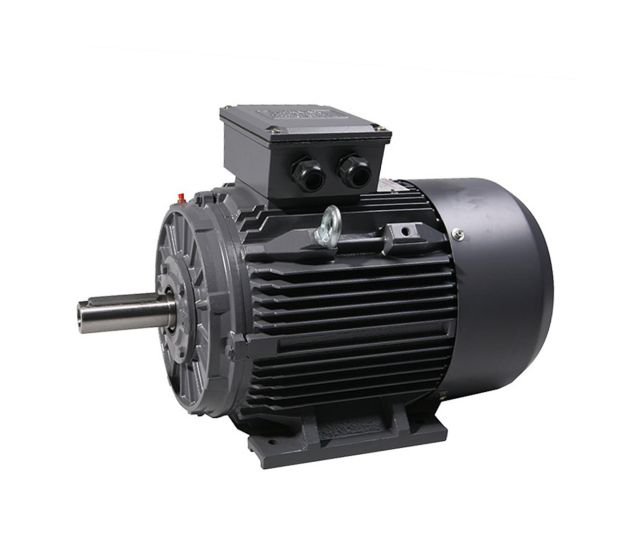

TECC3, 3 Phase, 22kW, 6 pole, IE3 Premium Efficiency Motor
TECC3, cast iron frame, 3 phase, 22kW, 6 pole motor, 200L2 frame, IE3 motor
£1,638.06
£1,365.05
TECC3, cast iron frame, 3 phase, 22kW, 6 pole motor, 200L2 frame, IE3 motor
B3 foot mount as standard
Select B35 foot & flange mount from the drop down box
NOTE: The length of the newer IE3 motor may be longer than the older IE1/IE2 motor. Please check that you have no size constraints.
Power kW
22
Power HP
30HP
Input Phases
3
Poles
6
Slip Speed
970rpm
Frame Size
200L2
Model No
TECC3-200L2-6
Frame Material
Cast iron
Shaft Diameter
55mm
Current 200V
N/A
Current 400V
42.5Amps
Weight
249.000000
Width
399mm
Depth
768.5mm
Height
500mm
Input Volts Delta
400V
Input Volts Star
690V
Encl Rating
IP55
Efficiency
IE3
Duty
S1
Mounting Type
B3
Input Freq
50 / 60Hz
Max Temp
40 Deg C
Inverter Rated
Yes
Approvals
CE
