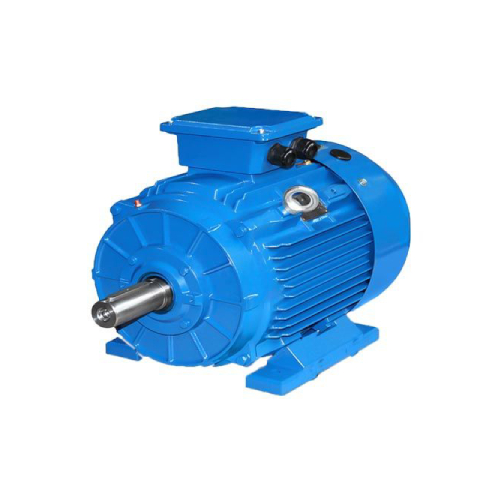

TEC Spartan, 3 Phase, 15kW, 4 pole, 160L Frame, IE3 Premium WIMES Compliant Motor

TEC Spartan 3 Phase Motor – 15kW, 4 Pole, 160L Frame (IE3 Premium Efficiency)

Fully WIMES Compliant Motor for UK Water Industry Applications

The TEC Spartan motor range is designed specifically to meet the demanding requirements of the UK water sector, fully compliant with WIMES 3.03 (Issue 8) – ensuring proven reliability, efficiency, and long-term performance in critical infrastructure environments.

Built to deliver durability, energy efficiency, and low total cost of ownership, Spartan motors are a trusted choice for water industry applications where compliance and performance cannot be compromised.

WIMES Compliance (Water Industry Mechanical & Electrical Specification)

This motor fully meets WIMES 3.03 Issue 8 requirements, ensuring suitability for UK water industry standards covering efficiency, reliability, and mechanical integrity in demanding operational environments.

Mounting Options

• B3 foot mount as standard
• Optional B34 foot & face mount (select from dropdown)
• Optional B35 foot & flange mount (select from dropdown)

Note: Please check dimensional compatibility – newer IE3 motors may be longer than older IE1/IE2 equivalents.

Key Features of the Spartan Motor Range

Durability & Protection

• C3 medium duty (RAL5010) corrosion-resistant paint finish
• IP55 protection rating
• TEFC (Totally Enclosed Fan Cooled) – IC411 cooling system
• Cast iron terminal boxes (80 frame and above)
• Stainless steel nameplate and fixings
• 2-year warranty for added peace of mind

Mechanical Reliability

• Drive end bearing location standardised across all models
• NSK sealed-for-life (ZZ) bearings on 80–132 frame
• Regreasable bearings on 160 frame and above
• Enhanced ingress protection with spring oil seals and flinger disc design
• SKF insulated non-drive-end bearing (280 frame and above)
• Shaft grounding on 315 frame and above

Winding & Thermal Protection

• PTC thermistors and RTDs (PT100) on 200kW+ models
• Anti-condensation heaters with connection diagram and warning label
• Tropicalised winding treatment for harsh environments

Energy Efficiency & Electrical Design

• IE3 premium efficiency (0.75kW – 55kW)
• IE4 super premium efficiency (75kW – 200kW)
• Class F insulation (temperature rise B)
• VPI (Vacuum Pressure Impregnated) windings for enhanced durability
• Internal and external earth points for safety compliance

Flexible Installation Options

• Auxiliary terminal box available (160 frame and above)
• Left-hand or right-hand terminal box orientation available
