Control Panels
Custom built control panel solutions,
designed, manufactured and tested in-house.
Case Studies

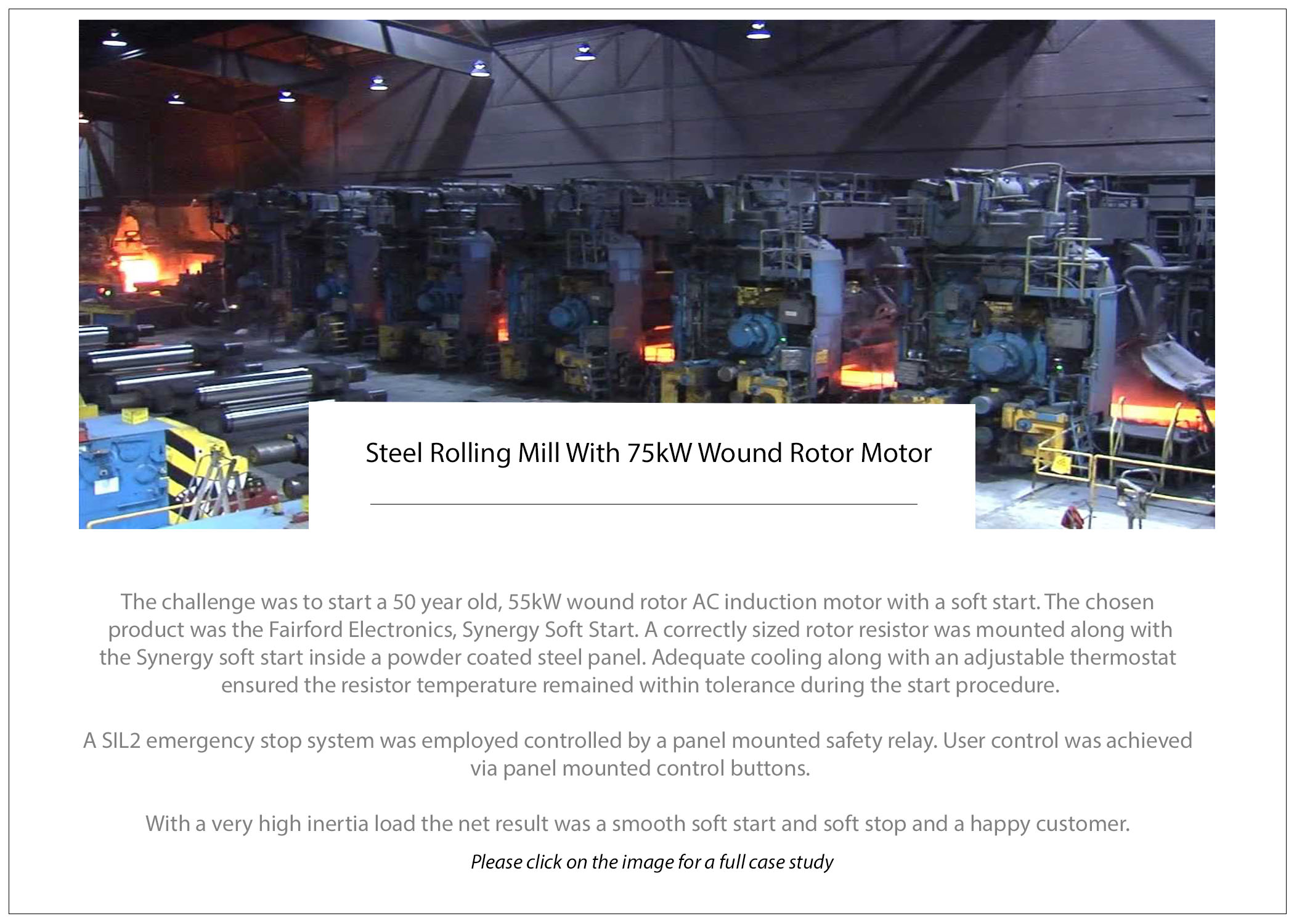

75kW Slip Ring Motor Control System for Steel Rolling Mill
Motor Control Warehouse designed and built a new control system for a 75kW motor used to drive a steel rolling mill. The new system replaced the site's ageing starter equipment, allowing the existing motor and machinery to be retained while providing a smoother, more controlled start and stop, reducing stress on the equipment and improving reliability.

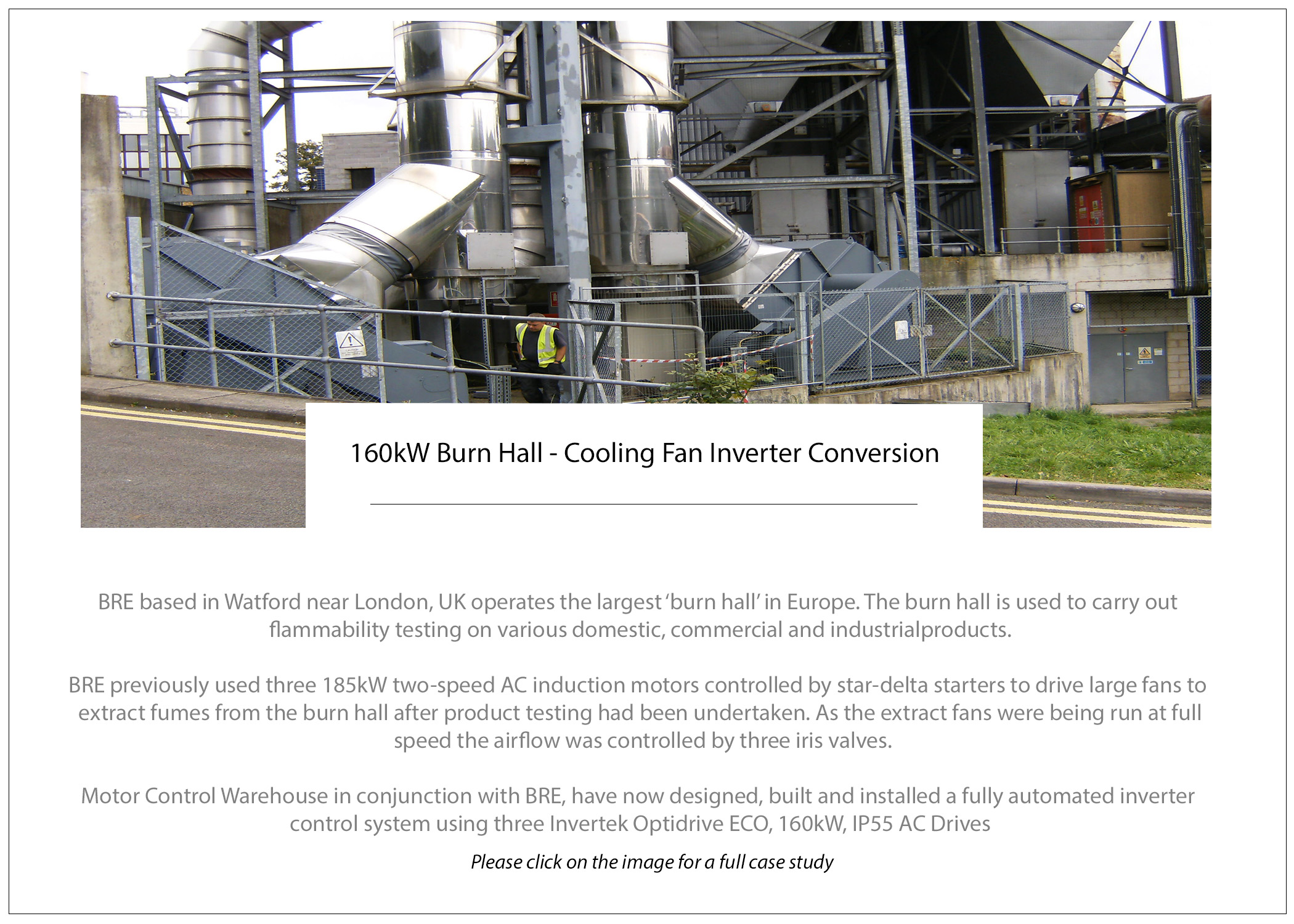

BRE Burn Hall: 3x 160kW Extraction Fan Control
Motor Control Warehouse supplied a variable speed drive control solution for three 160kW extraction fans at BRE Burn Hall, significantly reducing energy consumption and operating costs while providing improved control of the extraction system.

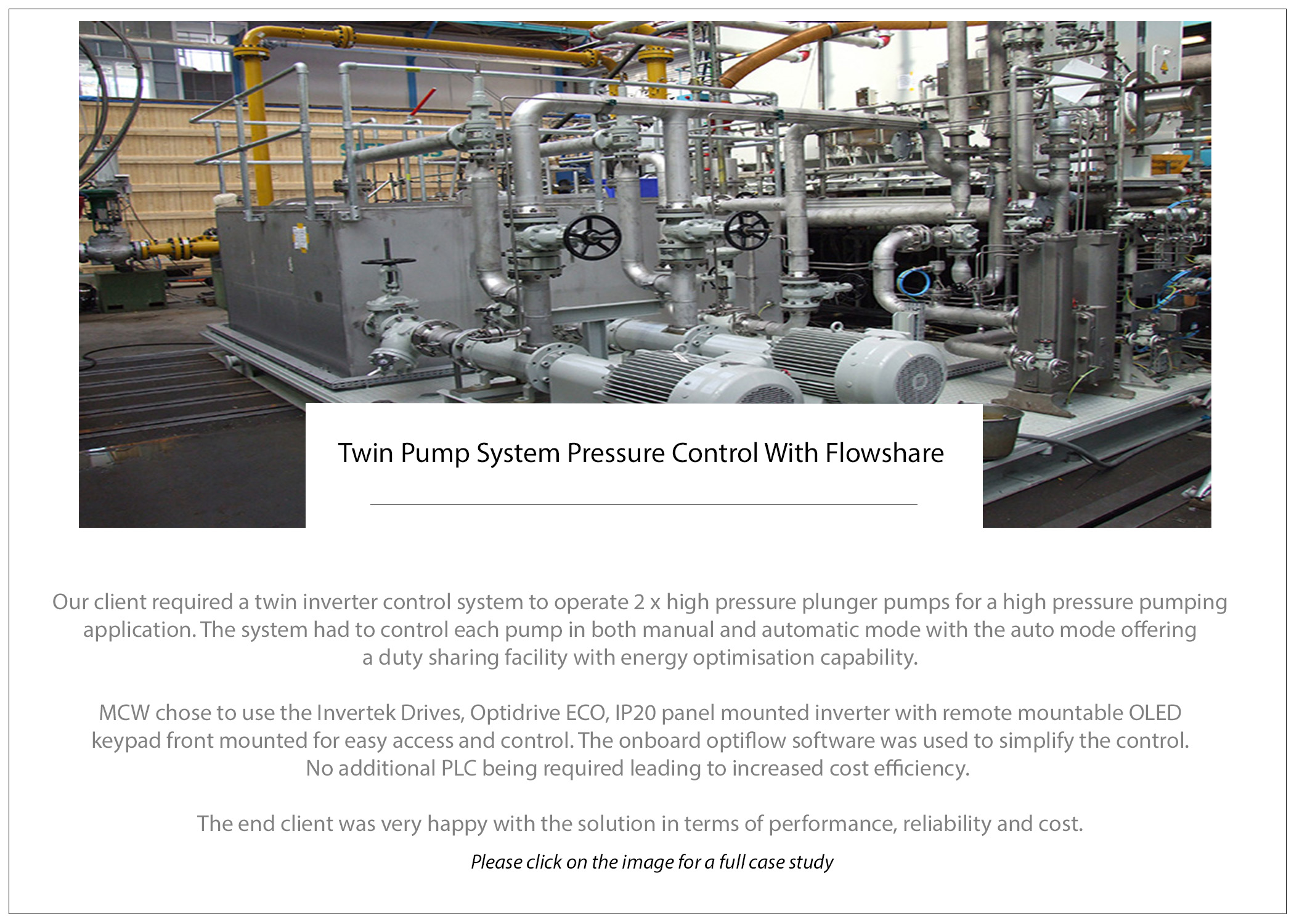

Twin Pump Pressure Washer System: Pressure Control & Flow Sharing Using Optiflow Software
Motor Control Warehouse designed and built a twin pump variable speed drive control system using Invertek Optidrive ECO drives and Optiflow software, providing constant pressure, automatic flow sharing and improved energy efficiency across the pressure washer system.
What We Do
We have many years of experience in the motion control industry and can design turnkey systems to your specific requirements. These systems can include:
- AC Inverter Drives
- DC bus regeneration systems
- Braking resistors
- Soft starts
- Mains input isolators
- Circuit protection (Circuit breakers/fuses)
- Contactors and relays
- HMI displays
- PLCs (with program written to your specification)
- Lamps, push buttons and switches
All our systems are built to high quality standards and come complete with electrical CAD drawings and a certificate of conformity.
We will be happy to discuss your system / application requirements.
Please call us to discuss or fill in the contact form.
We can also offer product customisation where we can customise a product to your specific requirements.
Please call us to discuss your requirements.
ENCLOSED INVERTER WITH ADJUSTABLE LASER PROXIMITY SENSOR
Enclosed inverter panel with an adjustable class 2 laser proximity sensor, used on a central heating radiator production line.
The proximity sensor is used to stop the radiator line when a radiator approaches the sensor.
ENCLOSED INVERTER WITH BRAKING AND HIGH INTEGRITY E-STOP
Enclosed inverter panel with a controlled emergency stop system with dynamic braking resistor.
This system is used on a winder to wind cable.
When the E-Stop button is pressed the system will bring the motor and it's load to a fast controlled stop.
There is also redundancy built in to the E-Stop system to increase it's reliability.
BOX CONVEYOR APPLICATION VIDEO
Automated box conveyor control panel with valve and proximity sensor control.
Incorporates Invertek Optidrive E3 inverter drive and Schneider smart relay.
The smart relay has been programmed by MCW to carry out the automated control in conjunction with the inverter drive used.
Please contact us if you have automated control requirements.
