CT Commander C200-03400056 2.2kW 400V 3 Phase
CT Commander C200-03400056 2.2kW 400V 3 Phase - Image 2
CT Commander C200-03400056 2.2kW 400V 3 Phase - Image 3

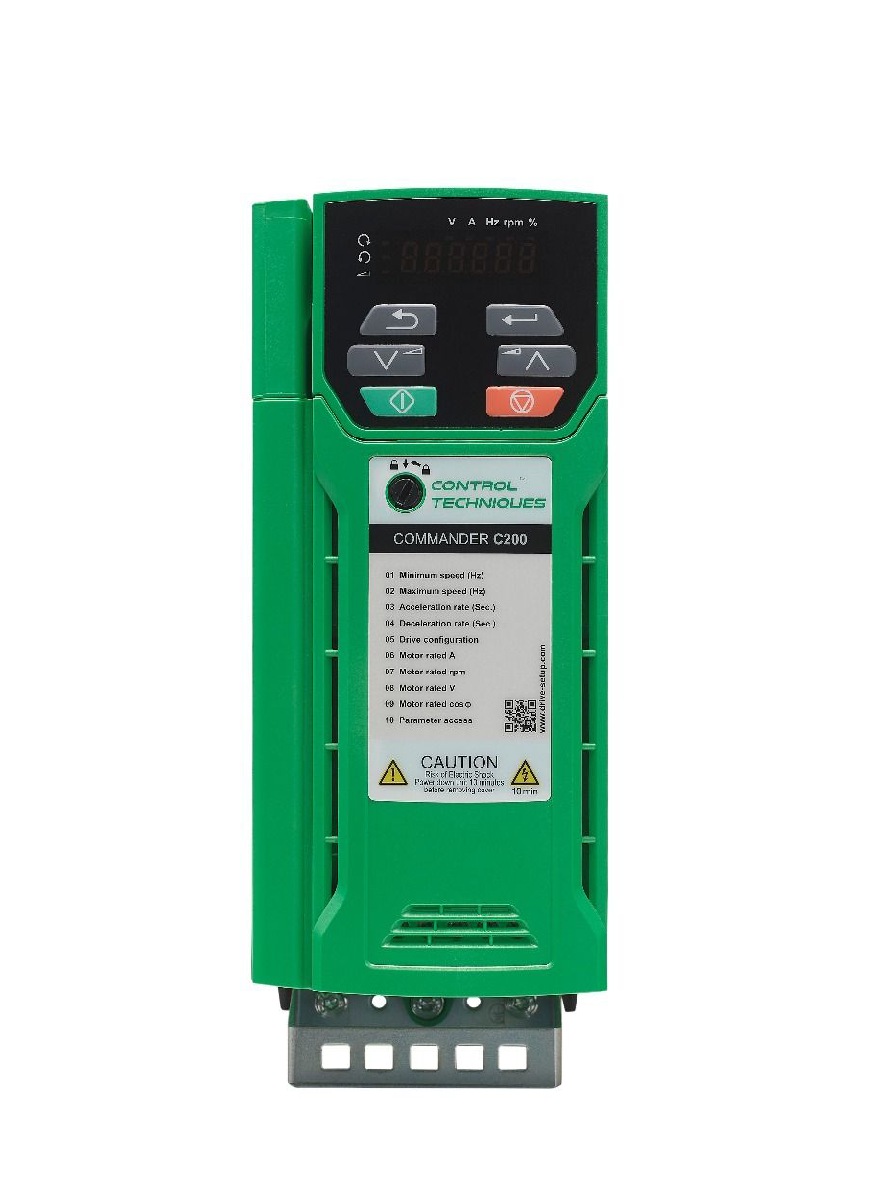

CT Commander C200-03400056 2.2kW 400V 3 Phase

Control Techniques Commander C200-03400056, 400V 3 phase input, 400V 3 phase output, 2.2kW, 5.6A, IP20.

£459.85
£551.82 (incVAT)

Enquire
SKU: C200-03400056 Category: Tags: , , ,

Control Techniques Commander C200-03400056, 400V 3 phase input, 400V 3 phase output, 2.2kW, 5.6A, IP20

For automation processes like conveyors, fans, pumps and mixers, Commander C200 offers extremely quick setup and installation.

The C200 has one parameter that automatically changes the control terminals to satisfy most simple applications.

Commander C200 is designed for easy migration from Commander SK.

Below is a link to the Control Techniques website and  Commander C200 section.

https://acim.nidec.com/drives/control-techniques/products/ac-drives/commander-c-general-purpose-drives

Commander C 5 Year Warranty

This product is covered with a 5 year warranty (Terms & Conditions apply).

Nidec Drives 5 Year Warranty

Commander C200 & C300 Frame 1 to 4 Power Installation Guide issue5 (1)

Commander General Purpose AC Variable Speed Drives Brochure.pdf

Commander-C200-C300-User-Guide.pdf

5 Year Warranty FAQs

Power kw
2.2
Power HP
3
Input Voltage
415V
Output Voltage
0 to 415V
Input Phases
3
Output Phases
3
Output Current
5.6A
Input Current
8.3Amps
Encl Rating
IP20
Width
90mm
Height
226mm
Depth
160mm
Frame Size
3
Overload
150%
Duty
Heavy
Dynamic Breaking
Yes
Weight
1.5kg
Control Type
RFC-A, V/f and Open loop vector
Input frequency
48-62Hz
Output frequency
0-550Hz
Maximum temperature
40 Deg C
Digital inputs
4
Digital outputs
1
Analogue inputs
2
Analogue outputs
1
Output relays
1
Serial Comms
With Option Module
Approvals
CE, UL
