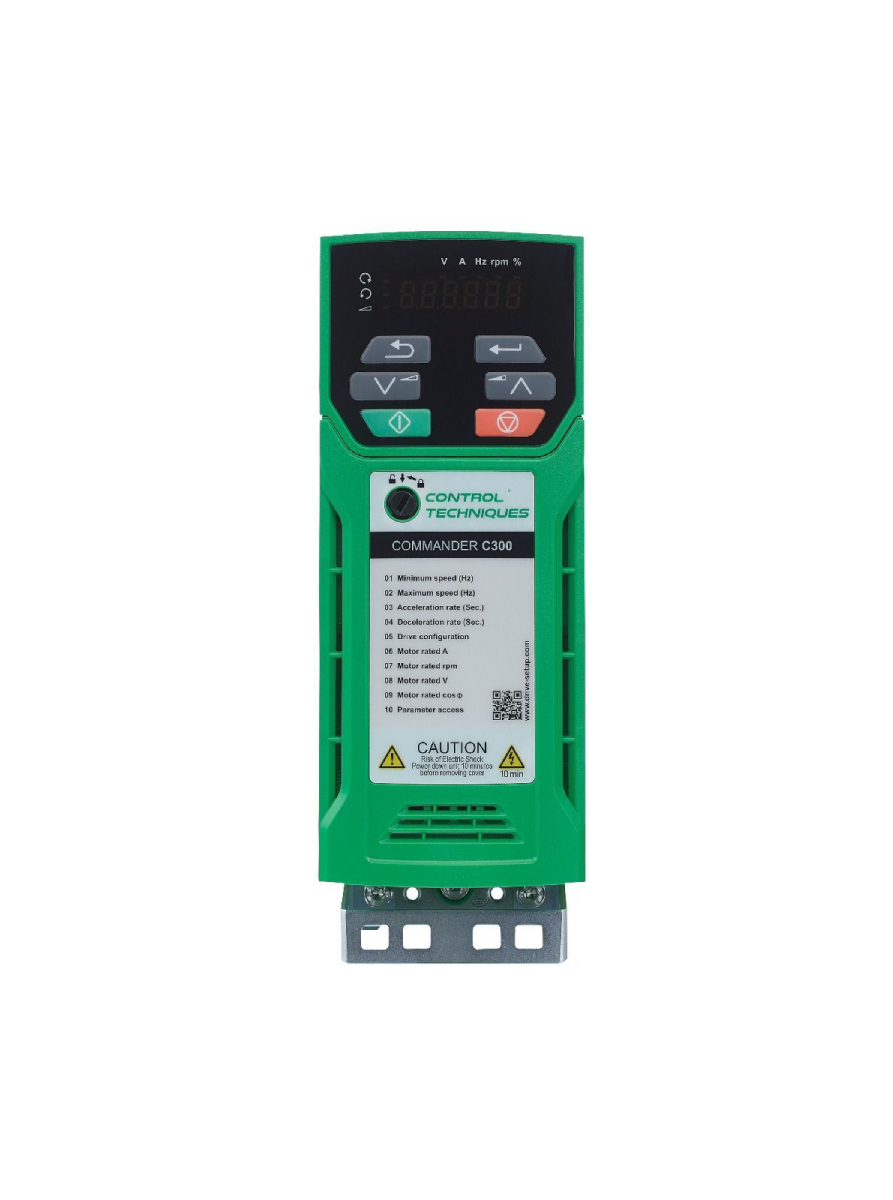

CT Commander C300-02400013 0.37kW 400V 3 Phase

Control Techniques Commander C300-02400013, 400V 3 phase input, 400V 3 phase output, 0.37kW, 1.3A, IP20.

£325.30
£390.36 (incVAT)

SKU: C300-02400013 Category: Tags: , , ,

Control Techniques Commander C300-02400013, 400V 3 phase input, 400V 3 phase output, 0.37kW, 1.3A, IP20.

For automation processes like conveyors, fans, pumps and mixers, Commander C300 offers extremely quick setup and installation.

The C300 has one parameter that automatically changes the control terminals to satisfy most simple applications.

Commander C300 is designed for easy migration from Commander SK.

Commander C300 incorporates a Safe Torque Off input that can be incorported in to a safety system, potentially reaching safety level SIL3

Below is a link to the Control Techniques website and Commander C300 section.

https://acim.nidec.com/drives/control-techniques/products/ac-drives/commander-c-general-purpose-drives

Commander C 5 Year Warranty

This product is covered with a 5 year warranty (Terms & Conditions apply).

Nidec Drives 5 Year Warranty

Power kw
0.37
Power HP
0.5
Input Voltage
415V
Output Voltage
0 to 415V
Input Phases
3
Output Phases
3
Output Current
1.3A
Input Current
2.3A
Encl Rating
IP20
Width
75mm
Height
205mm
Depth
150mm
Frame Size
2
Overload
150%
Duty
Heavy
Dynamic Breaking
Yes
Weight
1kg
Control Type
RFC-A, V/f and Open loop vector
Input frequency
48-62Hz
Output frequency
0-550Hz
Maximum temperature
40 Deg C
Digital inputs
4
Digital outputs
1
Analogue inputs
2
Analogue outputs
1
Output relays
1
Serial Comms
With Option Module
Approvals
CE, UL
