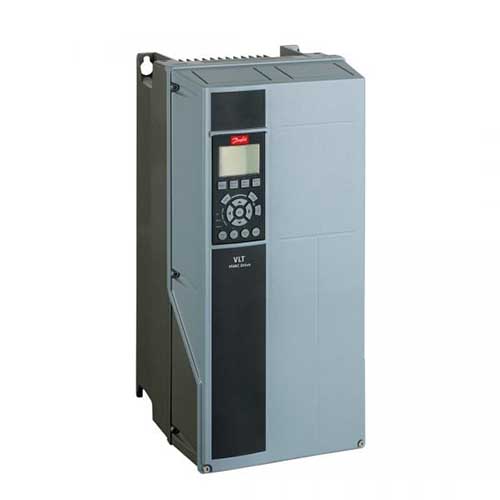

The Danfoss FC-102 15kW (20HP) AC inverter drive is a high-performance variable frequency drive (VFD) designed for efficient control of 400V three-phase motors in fan, pump, and HVAC applications.
This IP55 wall-mounted inverter is suitable for harsh and wet environments, offering reliable motor control, high protection rating, and reduced installation requirements without the need for a separate enclosure.
With advanced HVAC functionality and energy-saving features, the FC-102 delivers precise speed control and efficient operation in demanding industrial and building services applications.
£1,750.25
£2,100.30 (incVAT)
Key Features
✔ 15kW / 20HP output power
✔ 400V three-phase input and output
✔ IP55 wall-mounted, sealed enclosure
✔ Designed for fan, pump, and HVAC applications
✔ Integrated Smart Logic Controller (reduces need for external PLC)
✔ Automatic Energy Optimisation (AEO) for energy savings
✔ Built-in HVAC control functions for pumps, fans, and compressors
✔ Wide range of HVAC communication protocols for BMS integration
✔ Modular design for flexible system expansion
✔ Operates up to 50°C ambient temperature without derating
Designed for ease of installation, the FC-102 reduces system complexity while improving performance and energy efficiency in demanding environments.
Designed for Harsh & Industrial Environments
Unlike IP20 panel-mounted drives, the IP55 FC-102 is designed for wall mounting in exposed environments, reducing the need for external enclosures.
It is suitable for:
- Plant rooms
- Industrial environments
- Damp or dusty locations
- Outdoor-adjacent installations
The sealed design simplifies installation and improves reliability in challenging conditions.
Energy Efficiency & Performance
The FC-102 uses Automatic Energy Optimisation (AEO) to reduce energy consumption by typically 5–15%, adjusting motor output to match system demand.
This helps to:
- Lower running costs
- Improve system efficiency
- Reduce unnecessary energy waste
Integrated Control & System Reduction
The built-in Smart Logic Controller often removes the need for external PLC systems, reducing:
- Control panel complexity
- Installation cost
- Component count
Integrated HVAC functions also reduce the need for external pump, fan, and compressor control systems.
Communication & BMS Integration
The FC-102 supports a wide range of HVAC communication protocols, enabling seamless integration with building management systems and reducing the need for additional gateway devices.
Part Numbers
Short Part Number: FC102 131L9241
Full Part Number: FC-102P15KT4E55H3XGXXOXSXXXXAXBXCXXXXDX
Technical Support & Availability
Please contact us for availability.
For further information, our technical support engineers are available to assist with your enquiry.
Important Note
An inverter drive cannot be used as a general power supply. It is designed solely to control the speed of a compatible 3-phase AC motor.
