Swift Start Lite – 2.2kW, 230V, Single Phase Input

Model Number

SSL0220EN230V

Generally a stocked item but please contact us for availability on + 44 (0)1686 688948

£667.59
£801.11 (incVAT)

Enquire
SKU: SSL0220EN230V Category: Tags: , , , ,

2.2kW, 230V Single Phase Input, 230V Three Phase Output Enclosed Inverter Drive.

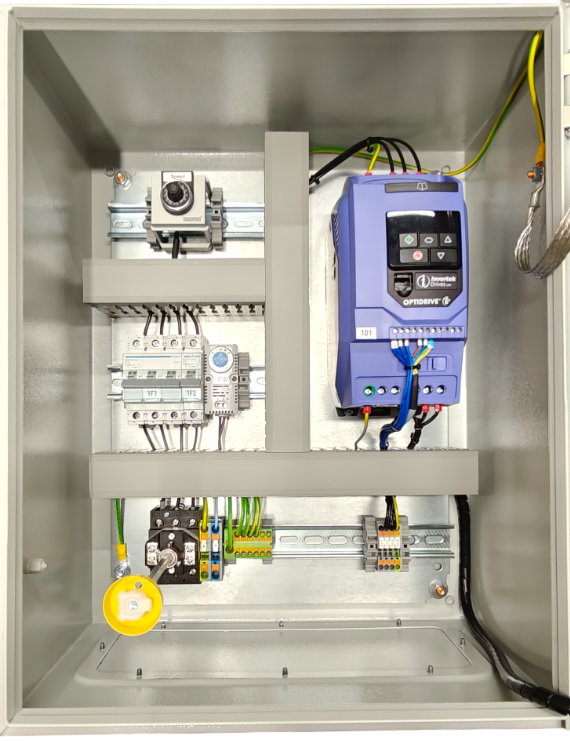

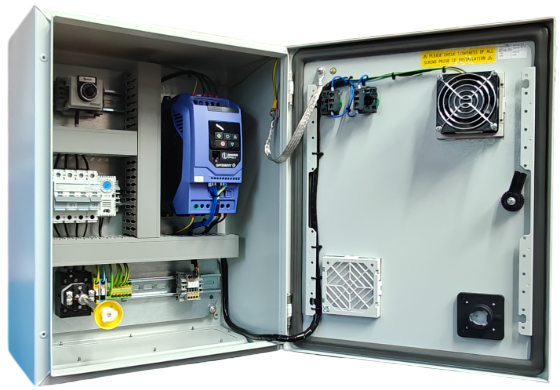

500mm x 400mm x 250mm Powder coated steel enclosure contains the following:

  • Door Interlocked Isolator
  • MCB Protection (Power and Control)
  • Single Phase 2.2kW Invertek E3 Inverter
  • Green Start Pushbutton
  • Red Stop Pushbutton
  • Fan and Filter
  • Thermostat
  • Tri rated cable
  • Terminals for Motor Connections
  • Drawings Supplied
  • IP 54 rating

Supply required: 230VAC + E

Availability – Generally a stocked item but please contact us for availability

Specifications:
When start button is pressed, the inverter will start and ramp up to the speed set in parameter P00.16

When stop button is pressed, the inverter will ramp to a stop.

Enclosed VSD Lite

View our range of enclosed Variable Speed Drives (VSDs) that are designed to enhance the way you control and manage your electric motors. These fully enclosed VSD units offer a combination of convenience, efficiency, and reliability.

With a robust and compact design, our enclosed VSDs are a perfect fit for a wide range of industrial applications. They provide seamless control for your electric motors, ensuring smooth and precise speed adjustments, soft starts, and soft stops. Whether you’re looking to enhance the performance of your machinery, optimize energy consumption, or reduce maintenance costs, our enclosed VSDs are your solution.

Standard model generally kept in stock.

Please call ahead for lead times regarding options and modifications (such as addition of fwd/rev switch, addition of speed potentiometer etc)

If this isn’t what you were looking for, we also make custom control panels to meet any requirements. Give us a call on +44 (0)1686 688948 or email us at [email protected]

Invertek E3 IP20 User Guide V1.04

SSL_Full_user_guide

Power kw
2.2
Power HP
3
Material
Powder Coated Steel
Model No
SSL0220EN230V
MCB Break Capacity
10kA
Height
500mm
Width
400mm
Depth
250mm
Input Voltage
230v
Onboard EMC filter
Yes
Onboard EMC Filter Class
C3
Overload
200%
Weight
24kg
Encl Rating
IP54
Input Current
19.2Amps
Motor current
10.5Amps
Inverter type
ODE-3-220105-1F42
