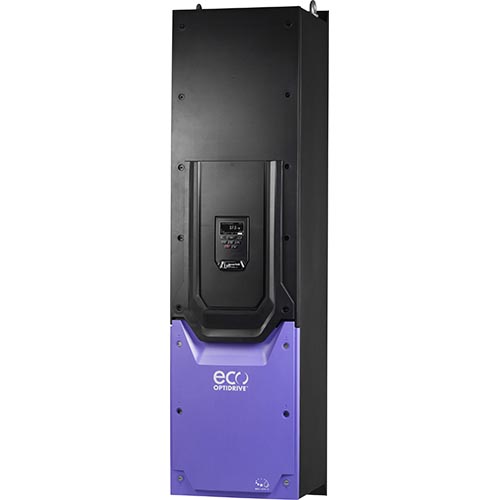

Invertek Optidrive Eco ODV-3-742020-3F1N-MN – 110kW [400V] IP55

Invertek Optidrive Eco, ODV-3-742020-3F1N-MN, 110kW, 202A output, 400V three (3) phase input, 400V three (3) phase output, IP55 non-switched indoor rated with internal EMC filter.

-10^oC to +40^o C operating ambient temperature (+50^oC with de-rating).

IP55 is limited protection from dust and low pressure jets of water from any direction.

TFT Text display with HAND and AUTO buttons on keypad.

Quadratic voltage / frequency output for maximum motor energy saving.

Internal PID feedback loop for pressure / flow / level / temperature control.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive Eco.

For further information on the Optidrive Eco, please call our experienced technical support engineers who can help with your enquiry.
