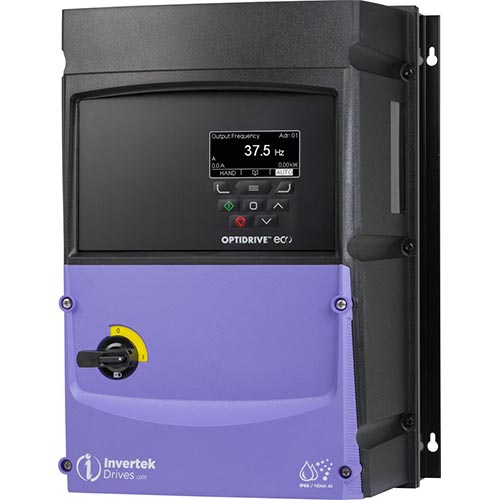

Invertek Optidrive Eco, ODV-3-440390-3F1E-MN, 18.5kW, 39A output, 400V three (3) phase input, 400V three (3) phase output, IP66 with disconnect with internal EMC filter.

In-built mains disconnect (isolator).

Suitable for external mounting, subject to the required installation criteria being followed (See downloads).

-20^oC to +40^o C operating ambient temperature (+50^oC with de-rating).

Manufactured with UV stabilised plastics.

TFT Text display with HAND and AUTO buttons on keypad.

Quadratic voltage / frequency output for maximum motor energy saving.

Internal PID feedback loop for pressure / flow / level / temperature control.

Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive Eco.

For further information on the Optidrive Eco, please call our experienced technical support engineers who can help with your enquiry.
