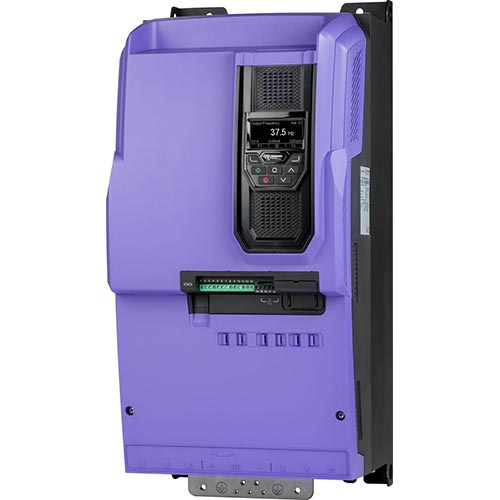

Invertek Optidrive P2, ODP-2-64045-3KF42-MN, 45kW, 90A output, 400V three (3) phase input, 400V three (3) phase output, IP20 with internal braking transistor and internal EMC filter.  Panel / cabinet mount.

Key Features

• High-performance open-loop vector control
• V/F motor control modes
• Internal EMC filter
• Internal braking transistor (external braking resistor required)
• TFT text display for setup and monitoring
• High overload capability for demanding applications
• Energy-efficient motor control
• Robust IP20 panel mounting design

Applications

• Conveyors
• Pumps and fans
• Mixers and agitators
• Cranes and hoists
• Material handling systems
• Industrial automation equipment

Why Choose the Optidrive P2?

• Designed for demanding industrial applications
• Excellent low-speed torque performance
• Precise speed and motor control
• Integrated braking and EMC filtering reduces installation complexity
• Reliable operation in harsh industrial environments

Looking for a Simpler General-Purpose Drive?

If your application involves standard pumps, fans, HVAC equipment or general machinery without demanding torque requirements, an Optidrive E3 may be a more cost-effective solution.

The Optidrive P2 is typically selected where higher performance motor control, greater overload capability and advanced industrial functionality are required.

Need More Information?

Please see the Downloads tab or our Knowledge Base for further technical and setup information on the Optidrive P2.

For further information, please contact our experienced technical support engineers who can assist with selection, installation and commissioning.

Important Note

An inverter drive cannot be used as a three-phase power supply for a machine. It is designed to control the speed and torque of a three-phase AC motor.
