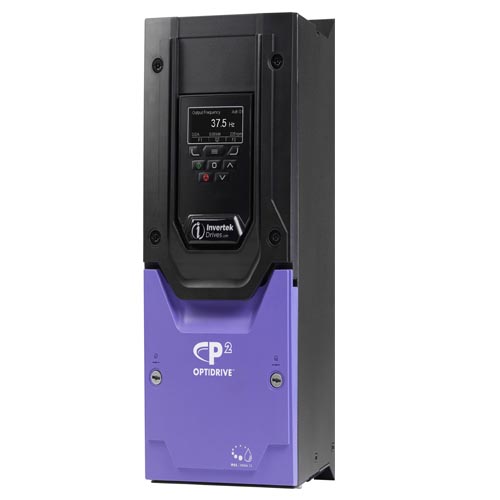

Invertek Optidrive P2, ODP-2-44110-3KF4N-MN, 11kW, 24A output, 400V three (3) phase input, 400V three (3) phase output, IP55 non-switched indoor rated with internal braking transistor and internal EMC filter.

Key Features

• High-performance open-loop vector control
• V/F motor control modes
• Internal EMC filter
• Internal braking transistor (external braking resistor required)
• TFT text display for setup and monitoring
• High overload capability for demanding applications
• Energy-efficient motor control
• Robust IP55 enclosure for wall mounting
• Suitable for installation outside of control panels
• Operating temperature range -10°C to +40°C (+50°C with de-rating)

Applications

• Conveyors
• Pumps and fans
• Mixers and agitators
• Cranes and hoists
• Material handling systems
• Industrial automation equipment
• Processing and manufacturing machinery

Why Choose the Optidrive P2 IP55?

• Designed for demanding industrial applications
• Excellent low-speed torque performance
• Precise speed and motor control
• Integrated braking and EMC filtering reduces installation complexity
• IP55 enclosure helps protect against dust ingress and low-pressure water jets
• Wall-mounted design reduces the need for large control cabinets
• Reliable operation in challenging industrial environments

Looking for a Panel-Mounted Alternative?

If your application requires installation within an electrical control panel, an Optidrive P2 IP20 model may be a more suitable option.

The Optidrive P2 IP55 range is typically selected where high-performance motor control is required alongside a robust enclosure suitable for direct wall mounting.

Looking for a Simpler General-Purpose Drive?

If your application involves standard pumps, fans, HVAC equipment or general machinery without demanding torque requirements, an Optidrive E3 may be a more cost-effective solution.

The Optidrive E3 is ideal for straightforward motor control applications, while the Optidrive P2 range is designed for applications requiring higher performance, greater overload capability and advanced industrial functionality.

Need More Information?

Please see the Downloads tab or our Knowledge Base for further technical and setup information on the Optidrive P2.

For further information, please contact our experienced technical support engineers who can assist with selection, installation and commissioning.

Important Note

IP55 provides protection against limited dust ingress and low-pressure water jets from any direction.

If your application requires greater environmental protection, frequent washdowns or outdoor installation, please see our IP66 inverter drive range.

An inverter drive cannot be used as a three-phase power supply for a machine. It is designed to control the speed and torque of a three-phase AC motor.
