Invertek Optidrive P2, ODP-2-24220-3KF4B-MN, 2.2kW, 5.8A output, 400V three (3) phase input, 400V three (3) phase output, IP66 switched with internal braking transistor and internal EMC filter.

Key Features

• High-performance open-loop vector control
• V/F motor control modes
• Internal EMC filter
• Internal braking transistor (external braking resistor required)
• TFT text display for setup and monitoring
• Built-in mains isolator
• Built-in speed potentiometer
• Built-in Forward / Stop / Reverse switch
• High overload capability for demanding applications
• Energy-efficient motor control
• Robust IP66 outdoor-rated enclosure
• UV-stabilised enclosure for outdoor durability
• Suitable for installation without a control panel (subject to installation requirements)
• Operating temperature range -20°C to +40°C (+50°C with de-rating)

Designed for Outdoor & Harsh Environments

Unlike standard IP20 drives, the Optidrive P2 IP66 range is designed for installation in demanding industrial environments and can be mounted outside of a control panel, subject to the installation requirements detailed in the product documentation.

• Dust-tight IP66 enclosure
• Protection against powerful water jets
• UV-stabilised enclosure for outdoor durability
• Suitable for industrial, agricultural and processing environments
• Reduces the need for additional enclosures or cabinets

Applications

• Conveyors
• Pumps and fans
• Mixers and agitators
• Cranes and hoists
• Material handling systems
• Industrial automation equipment
• Processing and manufacturing machinery

What’s the Difference: Switched vs Non-Switched?

ODP-2-24220-3KF4B-MN (This Model)
→ Includes a built-in mains isolator
→ Includes a speed control potentiometer
→ Includes a Forward / Stop / Reverse switch
→ Ideal for standalone installations where local operator control is required

ODP-2-24220-3KF4A-MN
→ Non-switched (no built-in controls other than the keypad and control terminals)
→ Ideal for use when connected to control panels, remote buttons or automation systems

Why Choose the Optidrive P2 IP66?

• Designed for demanding industrial applications
• Excellent low-speed torque performance
• Precise speed and motor control
• Integrated braking and EMC filtering reduces installation complexity
• IP66 enclosure suitable for harsh industrial environments
• Reduces the need for additional control cabinets
• Local motor control directly from the drive
• Reliable operation in challenging conditions

Looking for a Panel-Mounted Alternative?

If your application requires installation within an electrical control panel, an Optidrive P2 IP20 model may be a more suitable option.

The Optidrive P2 IP66 range is typically selected where high-performance motor control is required alongside maximum environmental protection.

Looking for a Simpler General-Purpose Drive?

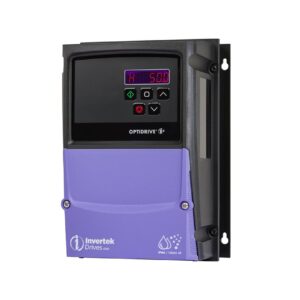

If your application involves standard pumps, fans, HVAC equipment or general machinery without demanding torque requirements, an Optidrive E3 may be a more cost-effective solution.

The Optidrive E3 is ideal for straightforward motor control applications, while the Optidrive P2 range is designed for applications requiring higher performance, greater overload capability and advanced industrial functionality.

Need More Information?

Please see the Downloads tab or our Knowledge Base for further technical and setup information on the Optidrive P2.

For further information, please contact our experienced technical support engineers who can assist with selection, installation and commissioning.

Important Note

IP66 provides protection against dust ingress and powerful water jets when installed in accordance with the manufacturer’s guidelines.

An inverter drive cannot be used as a three-phase power supply for a machine. It is designed to control the speed and torque of a three-phase AC motor.
