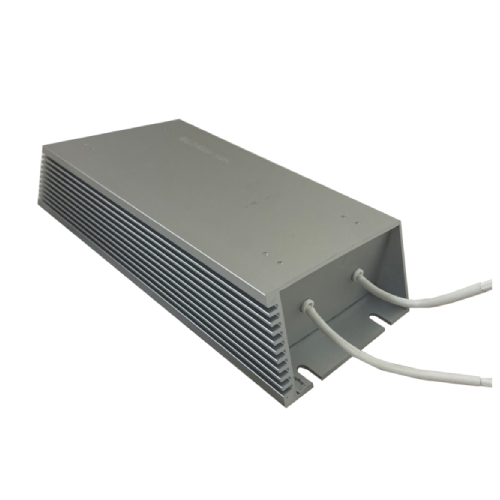

RXLG/1000/50 Dynamic Braking Resistor
Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads.
The RXLG/1000/50 Dynamic Braking Resistor can be mounted on to the cubicle backplate for good heat dissipation.
£91.50
£109.80 (incVAT)
Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads.
The RXLG/1000/50 Dynamic Braking Resistor should be mounted vertically on to the cubicle backplate for good heat dissipation.
The resistor goes highly resistive under overload.
Compatible with
Various
Model No
RXLG/1000/50
IP rating
IP20
Weight
3.2kg
Height
370mm
Width
107mm
Depth
52mm
Mounting type
Mounts to backplate
Input Voltage
900V DC
Resistance
50 Ohm
Rating Watts
1000W
