The OPT-2-ENCHT-IN is a plug in incremental encoder feedback module for Optidrive P2 allowing the connection of 8 to 30VDC HTL type encoders, up to 4096 ppr.
£56.10
£67.32 (incVAT)
The OPT-2-ENCHT-IN is a plug in incremental encoder feedback module for Optidrive P2 allowing closed loop motor control.
The module is compatible with 8 to 30VDC HTL type encoders, up to 4096 ppr.
NOTE: An external 24VDC power supply is required for the encoder. The encoder module has a 5VDC output which must be left unconnected. The 0V of the encoder power supply must be connect to the 0V of the encoder module.
Compatible with
P2
Depth
70mm
Height
20mm
Width
56mm
Weight
0.1
Model No
OPT-2-ENCHT-IN
Encoder voltage
8 to 30VDC
Related products
-

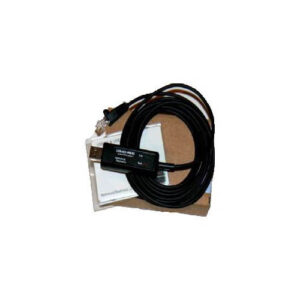

Isolated USB to RS485 Converter
