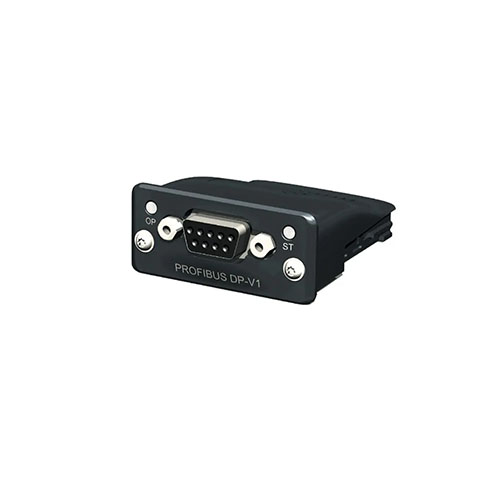

The OPT-2-PROFB-IN PROFIBUS DP module is intended to be installed in the Optidrive option slot and allows the Optidrive P2 and ECO to be connected to a PROFIBUS DP network.
£185.75
£222.90 (incVAT)
The OPT-2-PROFB-IN PROFIBUS DP module is intended to be installed in the Optidrive option slot and allows the Optidrive P2 and ECO to be connected to a PROFIBUS DP network.
The interface offers the following functionality :-
- Automatic Baud Rate Detection from 9.6kpbs to 12mbps
- Cyclic Process Data Exchange
- 4 Input Words from the network master to the Optidrive
- 4 Output Words from the Optidrive to the network master
- Parameter Access via DPV-1 Read / Write Services
Compatible with
ECO, P2
Depth
70mm
Height
20mm
Width
56mm
Weight
0.1
Model No
OPT-2-PROFB-IN
