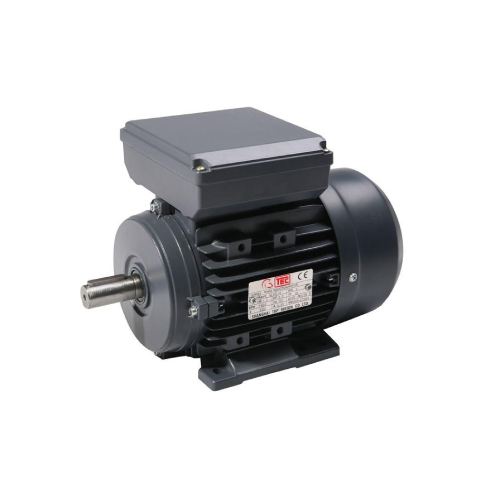

TEC TCC, 0.75kW, 240V 1 Phase 2 Pole Twin Cap Motor
TEC TCC, 0.75kW, 240V 1 Phase 2 Pole Twin Cap Motor - Image 2

TEC TCC, 0.75kW, 240V 1 Phase 2 Pole Twin Cap Motor

TEC TCC, 0.75kW, 240V 1 Phase 2 Pole Twin Cap Motor

£144.15
£172.98 (incVAT)

Enquire
SKU: TCC-801-2 Categories: , Tags: ,

The TCC capacitor start capacitor run motor is a single-phase motor designed for applications that need a high starting torque. The extra start capacitor and circuit gives a torque boost on start up to help get the load away. Available in 230Vac/1ph/50Hz and 110Vac/1ph/50Hz models.

Power kw
0.75
Power HP
1
Input Phases
1
Poles
2
Slip Speed
2800rpm
Frame Size
80
Model No
TCC-801-2
Frame Material
Aluminium
Output shaft diameter
19mm
Current 200V
4.87A
Current 400V
N/A
Weight
10kg
Width
163mm
Depth
290mm
Height
226mm
Input volts delta
N/A
Input volts star
N/A
Encl Rating
IP55
Duty
S1
Mounting type
B3
Input frequency
50Hz
Maximum temperature
40 Deg C
Inverter rated
No
Approvals
CE
Motor Mounting (see pic opposite for description)
B3 Foot, B34 Foot & Face +£12.12 (Excl. Tax: £10.10), B35 Foot & Flange +£12.12 (Excl. Tax: £10.10)
