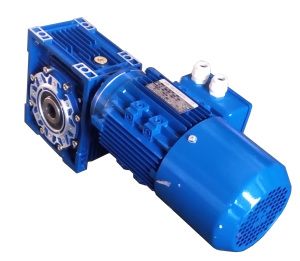

TEC Gearmotor with brake, 3 phase, 0.37kW at 50 to 1
TEC IE2 high efficiency 3 phase brake gearmotor, 0.37kW, 4 pole, 71 frame, coupled with a 50:1 ratio gearbox for reduced output speed and increased torque.
Designed for industrial applications requiring controlled motion, reliable braking, and high torque performance. Suitable for conveyors, processing equipment, handling systems, and heavy-duty machinery.
-
- 0.37kW 3 phase brake gearmotor
- IE2 high efficiency motor
- 4 pole motor configuration
- 50:1 gearbox reduction ratio
- Integrated electromagnetic brake
- Aluminium frame motor construction
- Suitable for industrial continuous duty applications
£379.10
£454.92 (incVAT)
T2AB, Aluminium Frame, 3 Phase, 0.37kW, 4 pole, 71 Frame, IE2 High Efficiency Brake Motor coupled to a TCNDK63 at 50 to 1 ratio
Standard brake voltage, 205Vdc rectified in motor terminal box, Fed from a single phase 230Vac supply.
Brake torque 5Nm. (The brake torque figures are factory set and cannot be adjusted).
Power kw
0.37
Input Voltage
400/230V
Input Phases
3
Poles
4
Frame Size
71/63
Encl Rating
IP55
Weight
12.6kg
Duty
S1
Output Speed
28rpm
Ratio
50:1
Approvals
CE
Model No
TECWGBM0.37-50
Mounting type
B3/B14/B5
Input volts star
400v
Input volts delta
230V
Frame Material
Aluminium
Output Bore Dia
25mm
Output Torque
78.32Nm
Service Factor
1.62
Efficiency
IE2
Maximum temperature
40 Deg C
Current 200V
1.92A
Current 400V
1.11A
Slip Speed
1370rpm
Inverter rated
Yes
