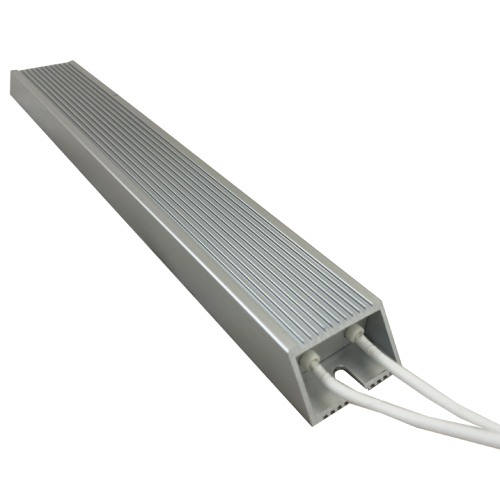

RXLG/250/100 Dynamic Braking Resistor
Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads.
The RXLG/250/100 Dynamic Braking Resistor can be mounted on to the cubicle backplate for good heat dissipation.
£52.50
£63.00 (incVAT)
Brake resistors allow energy regenerated from the motor to be dissipated, allowing shorter stopping times to be achieved with high inertia loads.
The RXLG/250/100 Dynamic Braking Resistor should be mounted vertically on to the cubicle backplate for good heat dissipation.
The resistor goes highly resistive under overload.
Compatible with
Various
Model No
RXLG/250/100
IP rating
IP20
Weight
0.5kg
Height
290mm
Width
40mm
Depth
20mm
Mounting type
Mounts to backplate
Input Voltage
900V DC
Resistance
100 Ohm
